OEM wiring diagrams on ALLDATA Repair have allowed a technician to resolve a recurring electrical fault on a Fiat 500 Cabrio (312).
Despite the brake light circuit being repaired twice, access to the original manufacturer wiring information allowed the technician to trace the fault, identify the root cause of the problem and carry out a permanent repair.
This is linked to the model’s folding roof mechanism, with the positive supply wire repaired twice already. This indicated an unresolved, underlying harness issue. The technician concentrated on tracing the circuit back to the Body Control Module (BCM) to confirm the fault’s location.

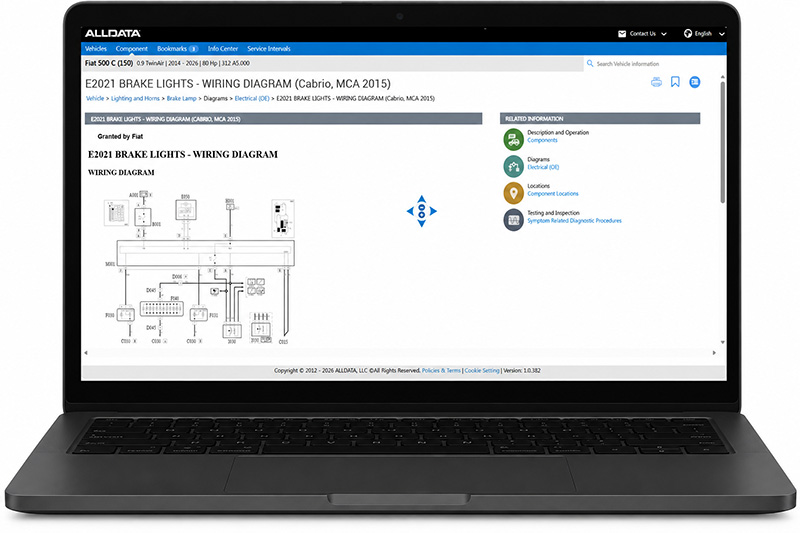

Using OEM wiring diagrams in ALLDATA Repair, the correct brake light circuit and BCM pinout were identified. Access to this information allowed the technician to verify the circuit, without extended continuity testing, unnecessary component replacement or diagnostic guesswork.
The technician was also able to take a direct approach; instead of repeating a localised repair, the professional replaced the affected section of wiring. This addressed the root cause and reduced the likelihood of recurrence.
This supports ALLDATA’s assessment that access to OEM repair information positively impacts efficiency and repair quality, improves first-time fix rates, reduces misdiagnosis, limits unnecessary part replacement, and supports faster, more confident decision-making processes.
Modern vehicle electrical systems rely on complex multiplex networks and multiple control modules, making accurate circuit information essential. Genuine OEM repair data supports correct diagnosis, accurate repair times and, ultimately, safe fixes.
