Our diagnostics dynamo Ben Johnson is on the lookout for those little things that just don’t look right. It’s easy – when you know where to look!

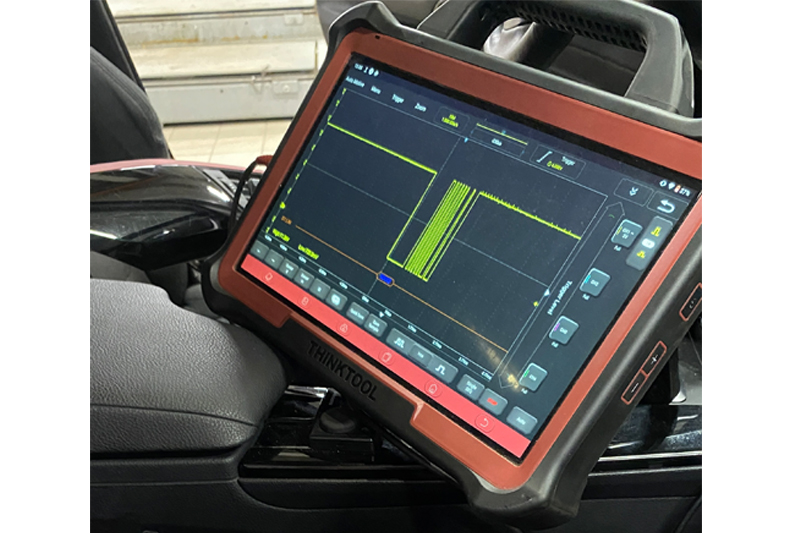

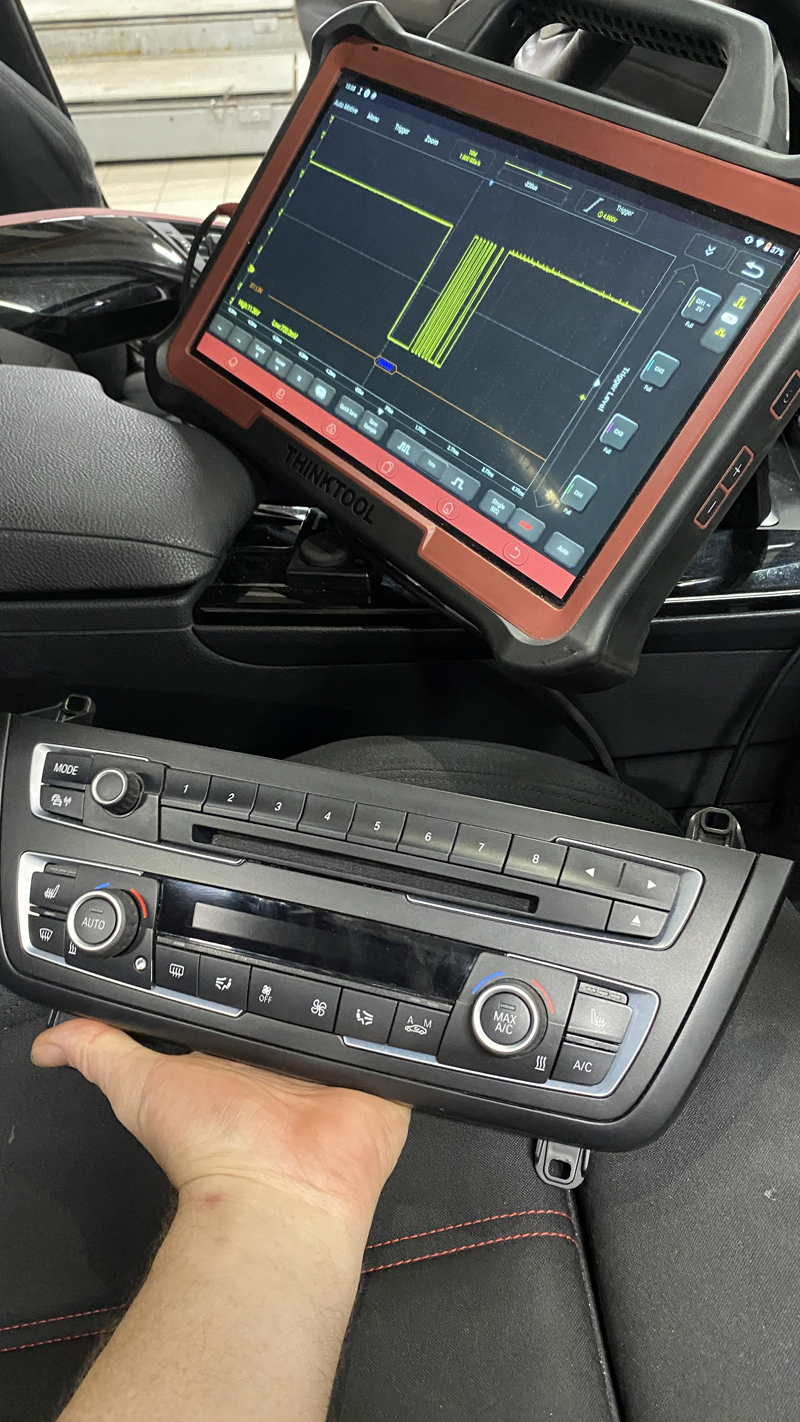

There are few sights more ominous to a mechanic than sitting in a modern BMW, pressing the climate control buttons, and watching absolutely nothing happen. Dead panel. No lights, no fan, no response. It’s the motoring equivalent of poking a corpse with a stick.
Now, on paper, this 320i F30’s climate system should have been fine. Twelve volts and ground were both present, the fuses were intact, and the connectors were seated. But BMWs, being BMWs, don’t run on just volts and grounds anymore. No, they also run on handshakes, wake-up nudges and a small army of digital signals, all of which must arrive in perfect order before a single fan blade dares to turn.
How the system is meant to work

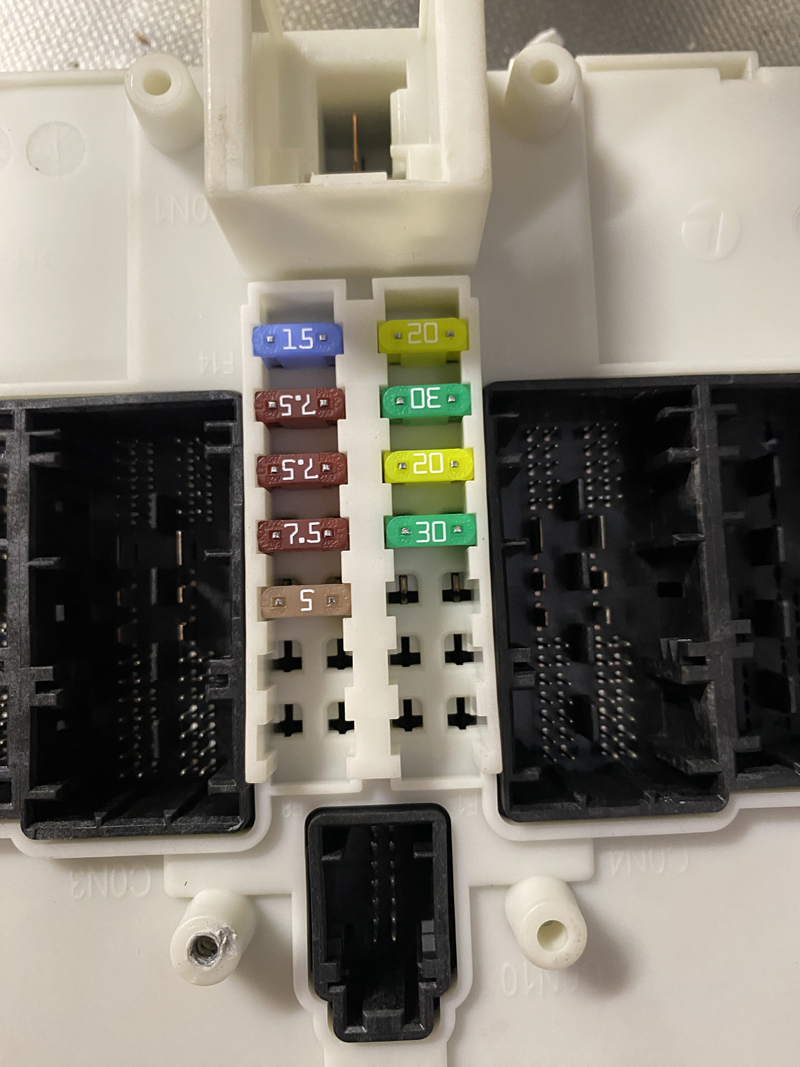

At the heart of it is the FEM (Front Electronic Module Fig.2). Think of it as the nightclub bouncer: Nothing gets in, or starts, without its say-so. When you turn the key, the FEM sends a wake-up call down the AC_LIN_4 line to the IHKA control unit.

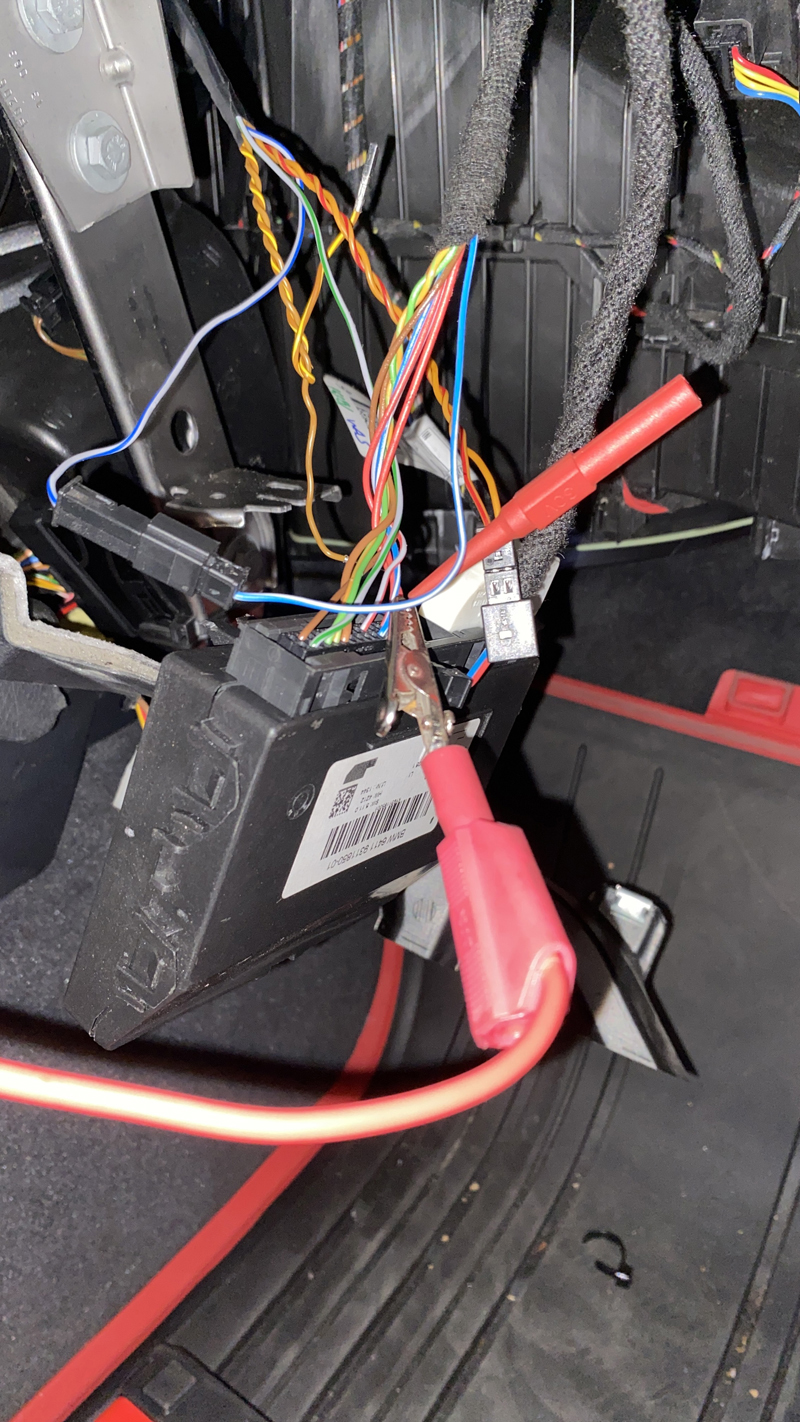

The IHKA module (Fig.3) is the brains of the climate system. It receives that AC_LIN_4 nudge and then talks to the front heater control panel via a separate LIN line, LIN_18 – the blue/white wire you’ll find on the diagrams. That’s the panel the driver actually touches: the buttons, the dials, the little display. When everything works, it’s seamless.
Overlaying all of this is the K-CAN network, which ties the FEM and IHKA together, carrying the usual chatter of temperatures, demands and flap positions. If K-CAN is down, nothing works. So, with the climate panel dead, I scoped the K-CAN first. Perfect. Beautiful square waves, crisp, no noise. The FEM and IHKA were still having a lovely conversation. That ruled out the obvious “no comms” problem.
The Problem with AC_LIN_4
Next stop: the wake-up line. Probing the AC_LIN_4 signal, I expected to see a healthy square wave pulsing away, the FEM’s digital alarm clock for the IHKA. Instead, I got something that looked like a mountain range (Fig.4): Two rounded peaks, frozen in place. Dead. No switching, no chatter, no activity.

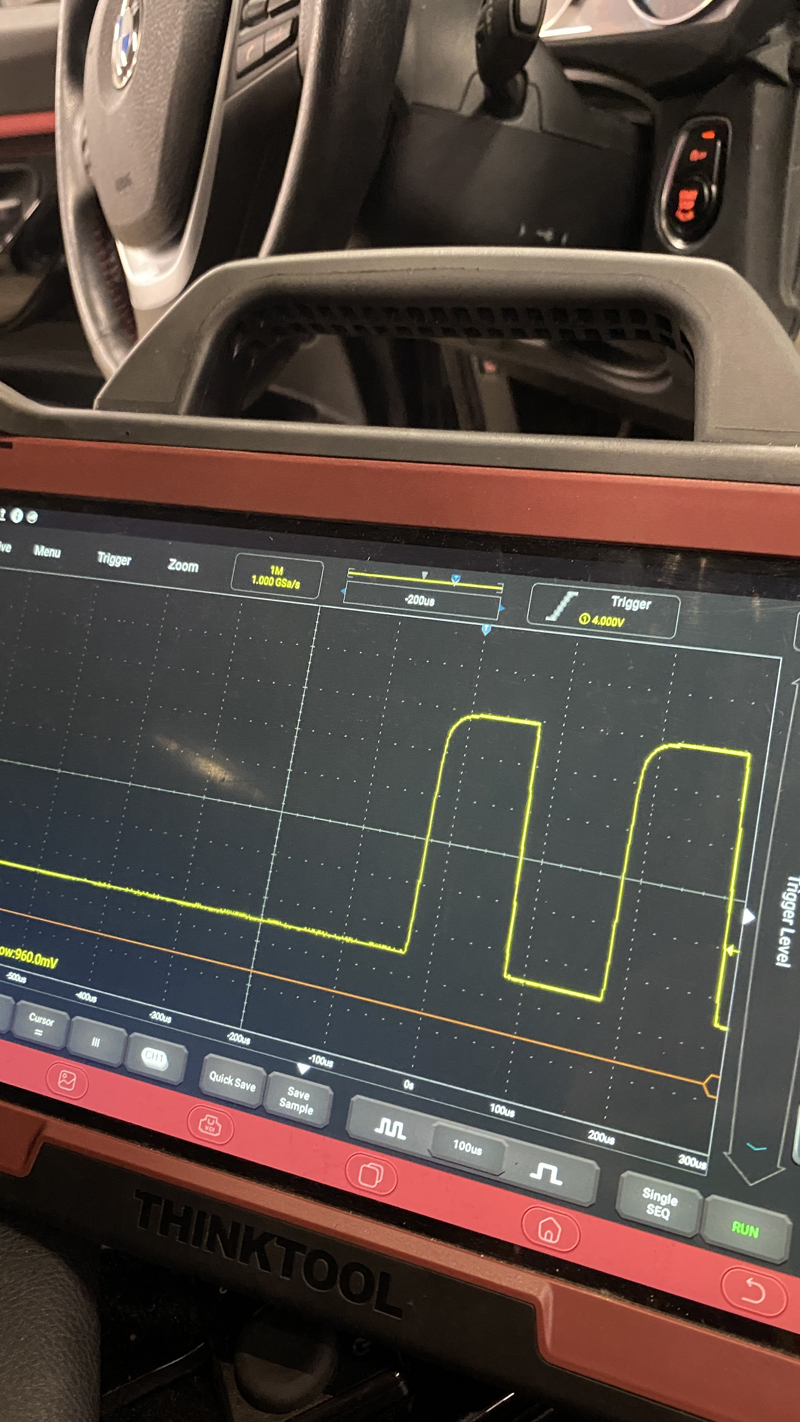

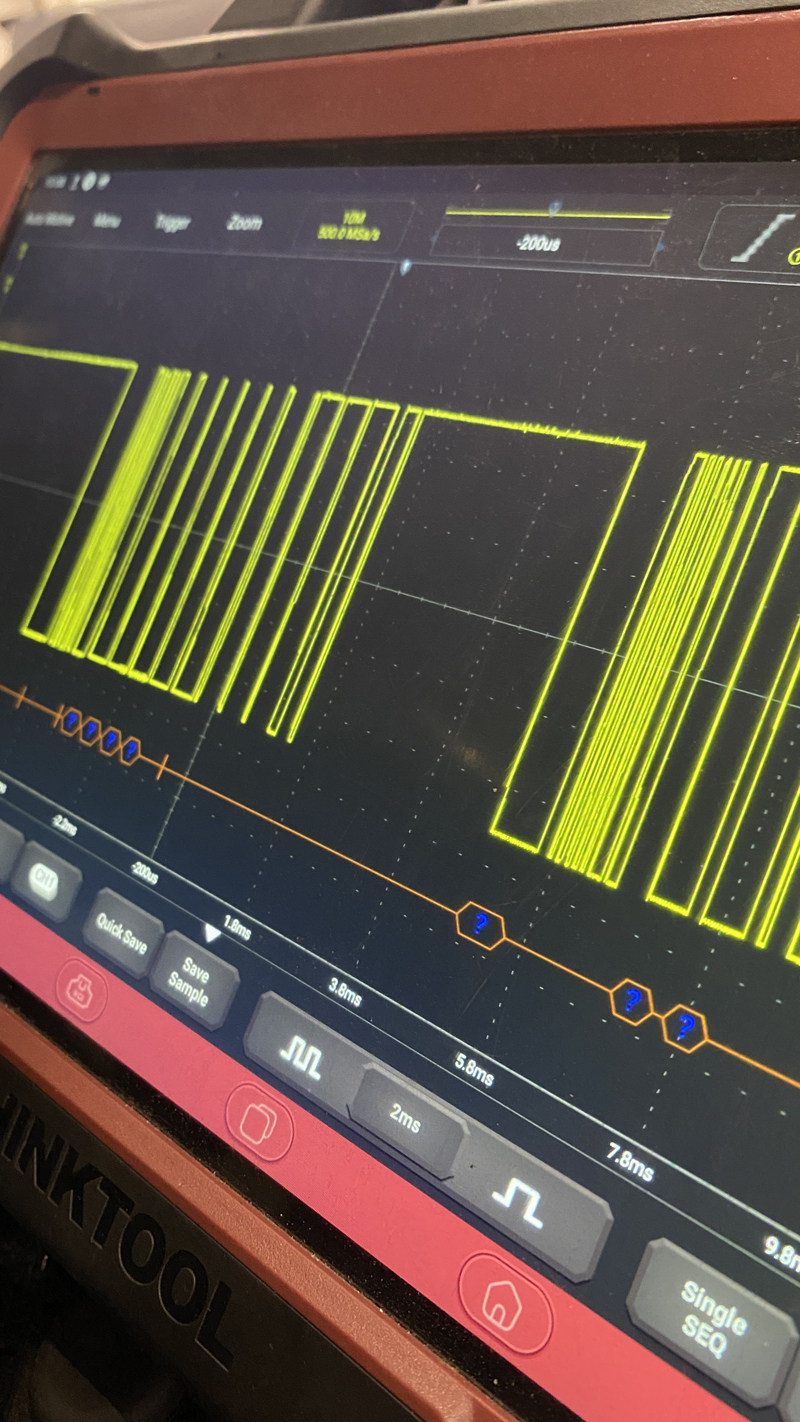

At this point, the IHKA never got its “wake up” call. And because the IHKA was still asleep, the front control panel on LIN_18 also stayed dark. Cause and effect. However LIN_18 did have a good signal but serial decoding was unable to pick up any messaging which, to me, meant that LIN_18 at the IHKA was possibly in standby mode since it couldn’t receive any information from the FEM (Fig.5).
The smoking gun
Now, here’s where experience kicks in. Digging down behind the centre console, I found the usual suspects: a suspicious plain black box, stuck in with a blob of glue and a cable tie that looked like it came free with a bag of compost (Fig.6). If BMW had built this, it would have been neatly clipped, labelled and tested a thousand times over. This wasn’t BMW. This was aftermarket. And here’s the tip that confirms it: I ducked under the front of the car and, sure enough, there it was – the little exhaust pipe of a Webasto auxiliary heater. Once you see that, you know exactly what you’re dealing with: a piggyback installation that has its claws into the LIN bus.

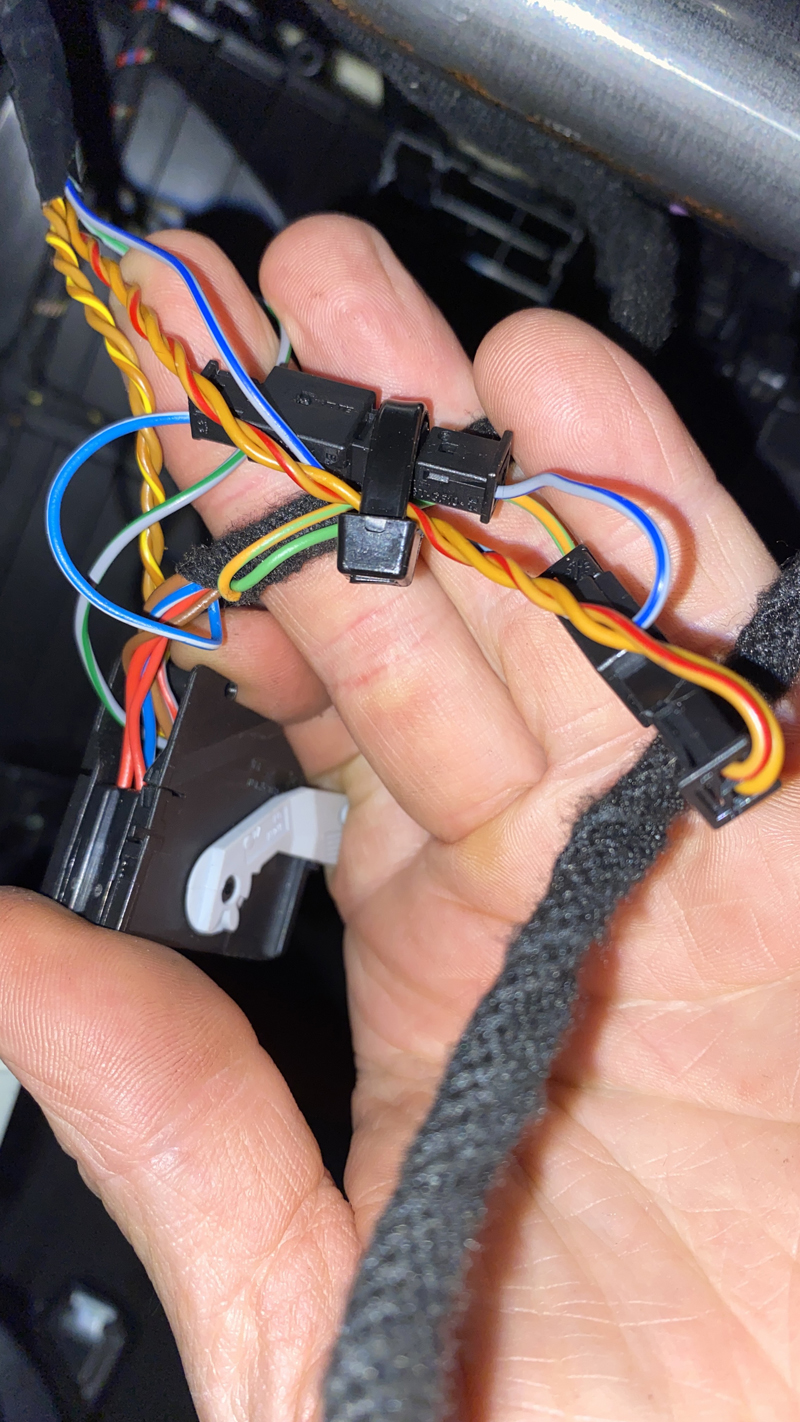

The fix
On closer inspection, the black Webasto switching unit had been spliced into the AC_LIN_4 line, effectively creating a loop. The FEM was still trying to send its signal, but the Webasto box was corrupting it – turning BMW’s precise digital square wave into garbled mush.
The cure was straightforward. I disconnected the piggyback wiring and reestablished the proper connection, plugging the AC_LIN_4 wire directly back into the IHKA control unit and severing the Webasto’s loop. Instantly, the scope showed a perfect digital square wave. Key on, and the IHKA woke up like nothing had ever happened. The front control panel lit up, the fans ran, and the customer once again had heat, air con, and a working dashboard.
The takeaway
This job was a perfect reminder that in modern cars, “dead panel” doesn’t mean “dead module.” The FEM was fine. The IHKA was fine. The K-CAN was fine. The villain was that innocent-looking black box tied behind the console, an aftermarket Webasto unit that had quietly corrupted the LIN bus until nothing worked.
So next time you’re chasing a lifeless IHKA on a BMW:
- Scope the K-CAN between FEM and IHKA – it should be clean.
- Scope the AC_LIN_4 line. If it’s frozen or distorted, look for interference.
- Don’t forget the tip: check under the car for that tell-tale Webasto exhaust pipe. If it’s there, you’re not dealing with a factory fault, you’re dealing with an aftermarket heater installation that’s sticking its fingers in BMW’s wiring.
And as always, beware the cheap cable tie and the blob of glue. They’re more diagnostic than any fault code.
